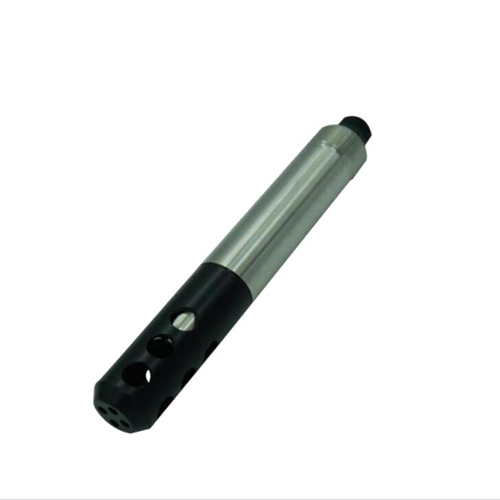

PRE615-DO Online Optical Dissolved Oxygen Sensor
PRE615-DO Online Optical Dissolved Oxygen Sensor
The Online Dissolved Oxygen Sensor PRE615-DO measures dissolved oxygen levels using the principle of dynamic luminescence quenching. When blue light excites the sensor membrane, it emits red light.
Online Dissolved Oxygen Sensor PRE615-DO
The Online Dissolved Oxygen Sensor PRE615-DO measures dissolved oxygen levels using the principle of dynamic luminescence quenching. When blue light excites the sensor membrane, it emits red light. The phase shift between the blue excitation and the red emission is measured and used to calculate the dissolved oxygen concentration.
Features of the Dissolved Oxygen Sensor
- No Membrane, No Electrode Design: This sensor eliminates the use of membranes and electrodes, reducing maintenance requirements and ensuring long-term stability.
- No Oxygen Consumption: The device operates without consuming oxygen and is independent of flow rate.
- Automatic Temperature Compensation: The automatic temperature compensation feature ensures high accuracy in all working conditions.
- Unaffected by H2S: The device is not affected by hydrogen sulfide gas, ensuring accurate measurements in environments containing this gas.
- Low Drift, Fast Response: The device has low drift and a fast response time, ensuring accurate and timely measurements.
- Low Maintenance, Low Operating Cost: The sensor is easy to maintain and has low operating costs, suitable for long-term use.
- Easy Sensor Cap Replacement: The sensor cap is easy to replace, reducing maintenance time.
Technical Specifications
- Measuring Range: 0-20mg/L (or 0-200% Saturation)
- Response Time: 10 seconds
- Protection Class: IP68
- Accuracy: ±1%
- Drift: <1% per year
- Working Temperature Range: 0 ~ 50℃
- Temperature Accuracy: ±0.2℃
- Protocol: Supports MODBUS RS485
- Connection Standard: ¾ inch NPT
- Power Supply: DC 6~12V +/-5% current <50mA
- Temperature Sensor Type: NTC (internal sensor)
- Sensor Diameter: 26mm
- Sensor Length: 177.5 mm
- Cable Length: 10m (standard); optional 5m, 15m, and 30m
- Calibration: Supports one-point and two-point calibration
- Sensor Cap Lifespan: 1 year (under normal use conditions)
- Body Material: Titanium
- Pressure: 5 bar
Applications
The Online Dissolved Oxygen Sensor PRE615-DO is ideal for monitoring water quality in industries such as water treatment, aquaculture, and other applications requiring accurate dissolved oxygen measurement
