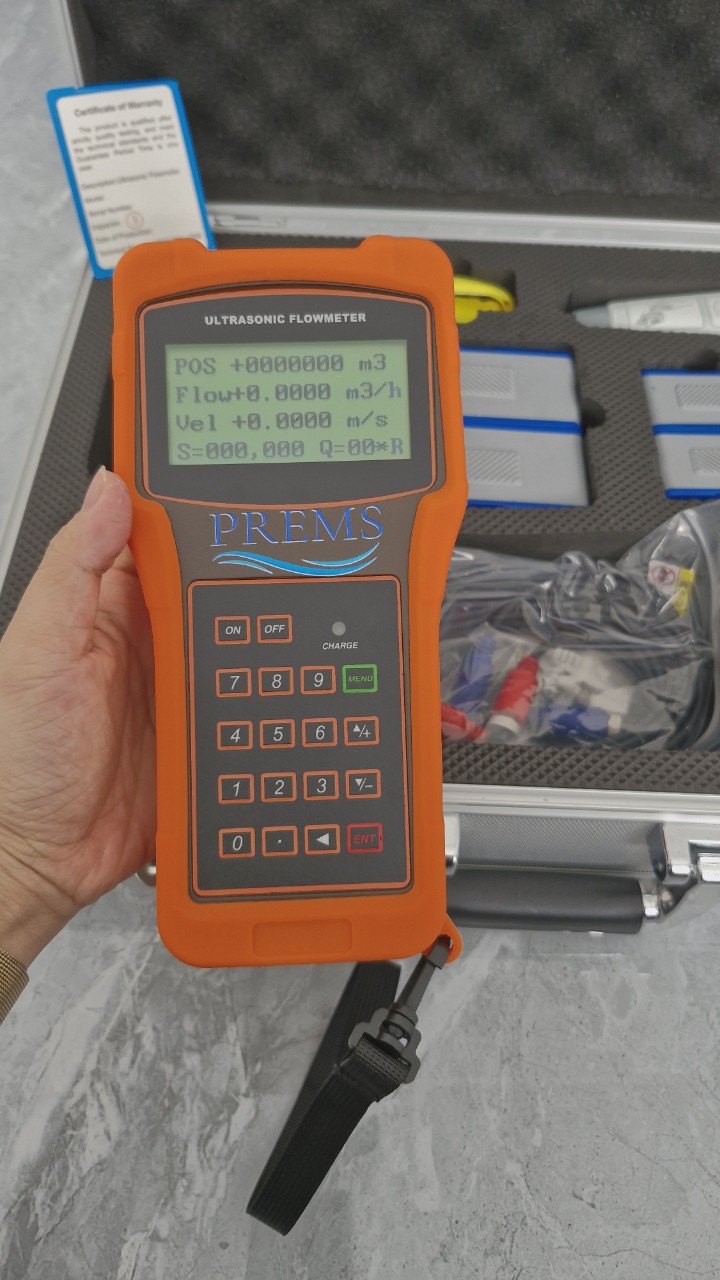

The Handheld Ultrasonic Flow Meter PRE-UFM-P is an advanced device meticulously designed for accurate measurement of liquid flow within closed pipes. Utilizing clamp-on transducers, this portable flow meter provides precise readings without the need for intrusive mechanical parts that penetrate the pipe wall, ensuring an undisturbed flow system.

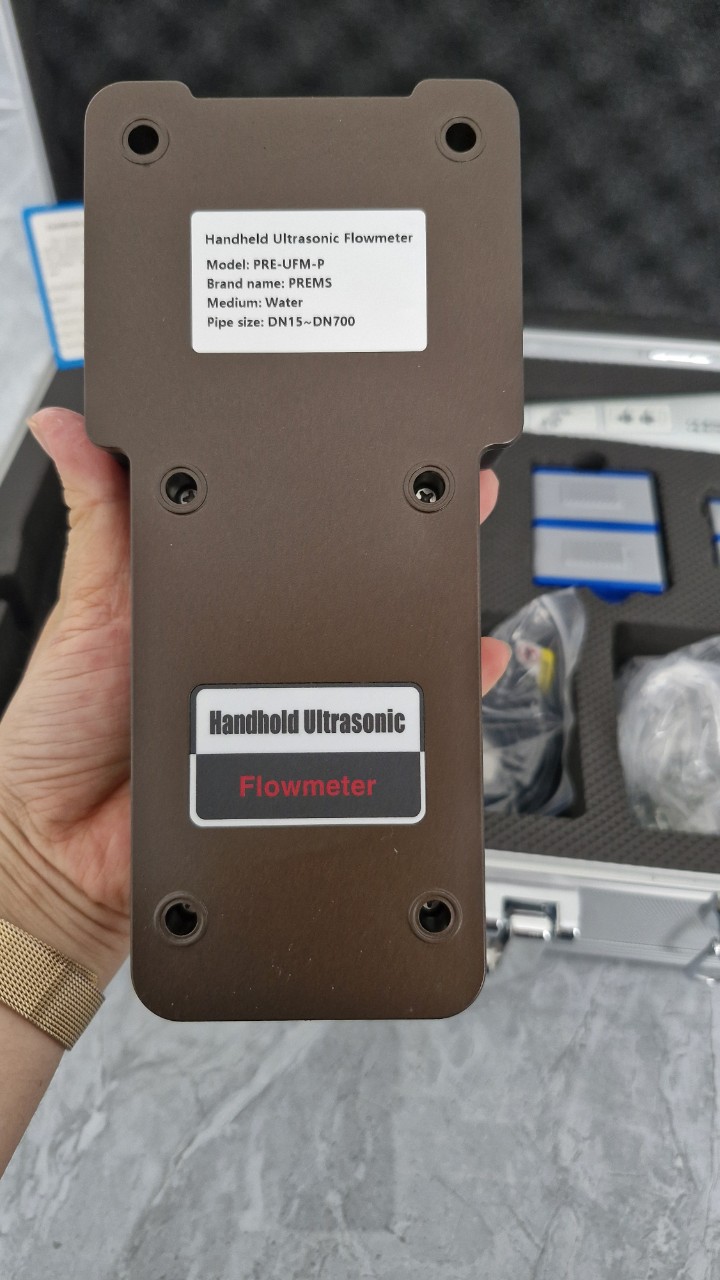

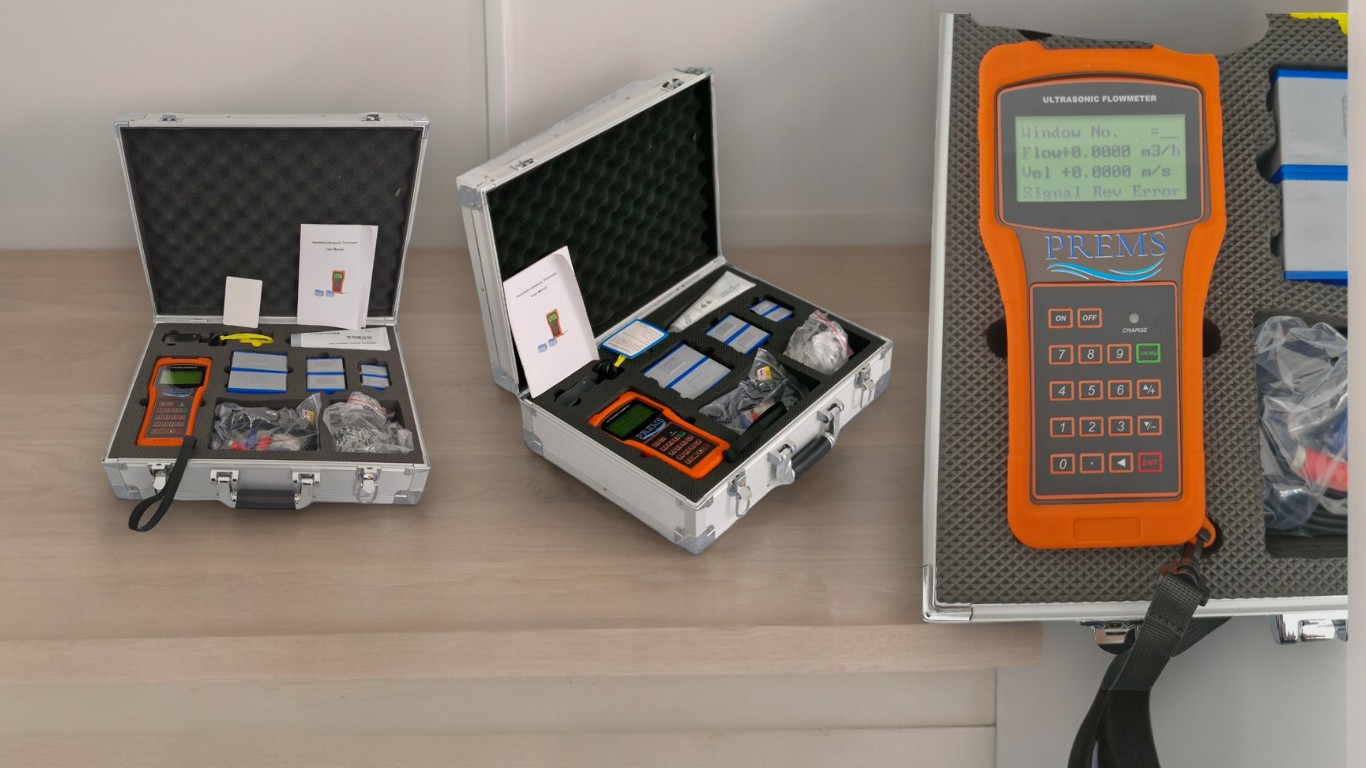

Handheld Ultrasonic Flow Meter PRE-UFM-P
The Handheld Ultrasonic Flow Meter PRE-UFM-P is an advanced device meticulously designed for accurate measurement of liquid flow within closed pipes. Utilizing clamp-on transducers, this portable flow meter provides precise readings without the need for intrusive mechanical parts that penetrate the pipe wall, ensuring an undisturbed flow system.
Product Overview
The Handheld Ultrasonic Flow Meter PRE-UFM-P operates on ultrasonic transit time principles, managed by a sophisticated microprocessor system. This versatile system can handle a wide range of pipe diameters, from 15mm to 6000mm, depending on the model, and is compatible with almost any pipe material. Additionally, the instrument can function across a broad range of fluid temperatures, making it suitable for various applications.
Key Features of Handheld Ultrasonic Flow Meter PRE-UFM-P
| Feature | Details |
|---|---|
| Exceptional Accuracy | – Linearity: Better than 0.5% <br> – Repeatability: Better than 0.2% <br> – Accuracy: Better than ±1% |
| Compact and Lightweight Design | – Dimensions: 200×93×33mm <br> – Weight: 390g |
| Non-Intrusive Measurement | – Clamp-on transducers ensure no pressure drop and no disturbance to the pipe. |
| Broad Measuring Range | – Multiple transducer types available, suitable for pipe sizes from DN15mm to DN6000mm. |
| Large LCD Display | – Displays instantaneous flow, accumulated flow (positive, negative, and net), velocity, and operational status. |
| Integrated Data Logger | – Stores over 2000 lines of measurement data with a built-in 24K data logger. |
Applications
The Handheld Ultrasonic Flow Meter PRE-UFM-P is ideal for a wide array of applications, including:
- Water Systems: Hot water, chilled water, municipal water, seawater, and more.
- Sewage and Drainage: Suitable for systems with small particle quantities.
- Oil Industry: Measurement of crude oil, lubricating oil, diesel, fuel oil, and more.
- Chemical Processing: Effective for alcohol, acids, and various chemicals.
- Solvents: Diverse solvent applications.
- Food and Beverage Processing: Accurate flow measurement for processing.
- HVAC Systems: Hot and cool water, and water/glycol solutions.
- Water and Waste Treatment: Comprehensive flow measurement solutions.
- Power Plants: Applicable for nuclear, thermal, and hydropower plants, including boiler feed water.
- Energy and Water Management: Monitoring energy consumption and managing water conservation.
- Metallurgy and Mining: Applications such as acid recovery.
Specifications
| Category | Specification |
|---|---|
| Main Unit | |
| Principle | Transit-time ultrasonic flow measurement |
| Accuracy | Better than 1%-2%; Repeatability: Better than 0.2% |
| Display | 4-line x 16-character LCD with backlight |
| Dimensions | 200×93×33mm |
| Weight | 390g |
| Operation | Supports 16-key light touch keyboard and simulation keyboard software |
| Data Interface | Insulated RS232 serial interface; supports MODBUS |
| Signal Output | 1-way OCT output |
| Special Cable | Twisted-pair cable; standard 5m, optional 10m |
| Pipe Condition | |
| Material Compatibility | Steel, stainless steel, cast iron, copper, cement, PVC, aluminum, glass steel, liner allowed |
| Pipe Diameter | DN15—6000mm |
| Straight Pipe Requirements | Upstream 10D, downstream 5D, 30D from the pump |
| Measuring Medium | |
| Types of Liquids | Water, ultra-pure liquids, solvents, and other liquids |
| Temperature Range | – Standard transducer: -30℃ to 90℃<br> – High-temperature transducer: -40℃ to 160℃ |
| Turbidity | Under 10000ppm and fewer bubbles |
| Flow Rate | 0–±10m/s |
| Flow Direction | Measures bidirectional flow rate |
| Working Environment | |
| Temperature | – Main Unit: -20℃ to 60℃<br> – Flow transducer: -40℃ to 160℃<br> – Temperature transducer as per customer demand |
| Humidity | Main Unit: 85% RH |
| Power Supply | AC 110V-240V |
Optional Transducer
The Handheld Ultrasonic Flow Meter PRE-UFM-P offers a range of optional transducers to accommodate specific measurement requirements, ensuring both flexibility and precision across diverse applications.
For those seeking accurate and non-intrusive flow measurement, the Handheld Ultrasonic Flow Meter PRE-UFM-P stands as the ideal solution. Its exceptional accuracy, extensive measuring range, and portable design make it well-suited for a wide array of industrial applications.
Experience unparalleled efficiency and precision in flow measurement with the Handheld Ultrasonic Flow Meter PRE-UFM-P.
